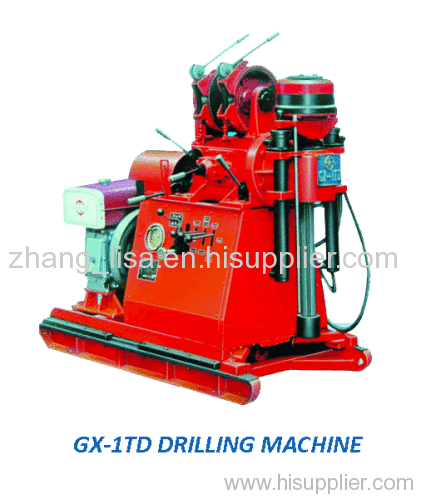

GX-1TD CORE DRILLING MACHINE GX-1TD manufacturer from China Gold Mechanical & Electrical CO.,LTD

Payment Terms:	T/T,L/C,D/A
Place of Origin:	Chongqing, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: GX-1TD

Packing: wooden case

Type: Drilling Rig

Means of Transport: Ocean,Air

Delivery Date: 2 weeks

Brand Name: GOLD

Geological drilling for railroad, highway, bridge tunnel, power station foundation, civil and industrial buildings and blasting hole etc.

APPLICATIONS:
Geological drilling for railroad, highway, bridge tunnel, power station foundation, civil and industrial buildings and blasting hole etc.

FEATURES:
1.Spindle type, mechanical transmission, hydraulic feeding, and steel skid frame mounted.
2.Hydraulic retracting lets drill body away from the drill hole, in order to hoist or lower the drilling tools.
3.Hydraulic chuck, labor saving.
4.Advanced design, multi-function, compact structure, lightweight, good detachability, easy to operate.
5.Large-powered, reasonable range of speeds, large torque, suitable for many drilling methods.
6.According to user's requirements the drilling machine can be equipped with mudpump, a variety kinds of drilling tools, A-derrick etc, for client choice.

Technical Specifications

final hole dia (mm)		150;130;110;91;75
drilling capacity (m)		30;50;70;100;150
angle rangle		0-90°
spindle speeds (r/min)		90;191;360;600
max torque (Nm)		1000
Max pull force (KN)		27
spindle stroke (mm)		450
max hoisting force with single line (KN)		14.7
Oil pump		CB32
Power unit	diesel engine	S1100A 2200r/min 11KW
	electric motor	Y160M-4 1460r/min 11KW
Weight (Excluding power)(kg)		500
overal dim(L×W×H)(mm)		1560×620×1205
